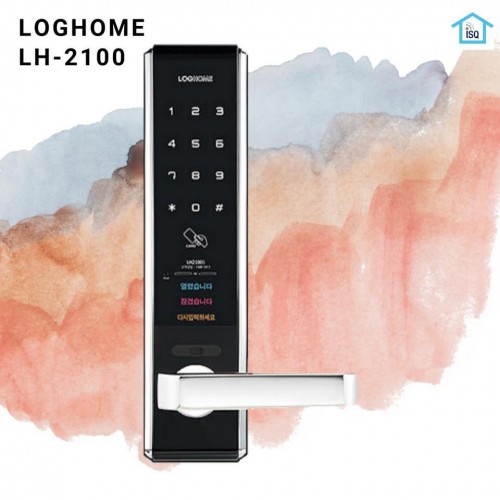

Digital door lock กลอนประตูดิจิตอล - Loghome LH2100SKN

Digital door lock กลอนประตูดิจิตอล - Loghome LH2100SKN
Digital door lock กลอนประตูดิจิตอล - Loghome LH2100SKN Digital door lock กลอนประตูดิจิตอล - Loghome LH2100SKN Digital door lock กลอนประตูดิจิตอล - Loghome LH2100SKN Digital door lock กลอนประตูดิจิตอล - Loghome LH2100SKN
Brand: Loghome / Evernet
Product Code: Loghome LH2100SKN
Availability: Out Of Stock
Price: ฿19,900.00 ฿9,900.00
Ex Tax: ฿9,900.00
Qty:     - OR -   Add to Wish List
Add to Compare

Loghome รุ่น LH2100SKN เป็น Main lock ที่ใช้ได้ทั้งระบบ รหัส บัตร (รองรับบัตรแรบบิท) และกุญแจ

กลอนประตูดิจิตอล digital smart lock Loghome



Distinctive Features :



     ●  Set up and change the password of 3~19 digits

     ●  Register the touch key up to 50 keys (Touch key type)

      Auto locking function

      Indoor/outdoor double lockup function

      Generate the alarm sound of 90dB or higher when forced to open abnormally

      Can use the 9V emergency power supply

      Prevention of burglary and mischief

        (It stops functioning for 1 minute when 5 consecutive password errors)






Product Specification



Category

Description

 Basic

information

 Model name

 LH2100-SKN

Access-Code

 3 ~ 19 digits

Card registration number

 Within 50

 Remote control registration number

15(Optional)

  Thickness of the door

35 ~ 50 mm

 Size

   Outdoor body

76.7 (W) × 304.6 (H) × 24 (D)mm



 Indoor body

78.5 (W) × 304.5 (H) × 33.5 (D)mm

 Material

  Outdoor body

 AL, ZN, PC, ABS

 Indoor body

 AL, ZN, ABS

 Treat the surface

 Triple metallic coating

 Power

 Working power

6V (alkaline battery 1.5V × 4 ea, AA SIZE)

 Emergency power

9V rectangular alkaline battery

 (separately purchased)

  Card size

25mm(W) x 25mm(H) x 0.8mm(D)

 Card frequency

13.561Mhz



 Precaution







  Read through this manual before use.

  Read the manual and then operate all functions. For a right after-sales service, prepare a product    certificate and keep it.

  Do not disassemble the machine at random. It may result in failure.

 When you disassemble it at your disposal, it may not work normally. If necessary, contact the customer center.

  Don not give the machine any impact or perform remodeling in any case.

  Otherwise, it may result in failure and malfunction.

  Do use the machine at a place where there is no water or moisture.

  It has no waterproof and dustproof function. So, any failure may be caused by short circuit, etc.





  Close all holes in the door after installation.

  Otherwise, outsiders may enter without permission through a slot for milk throwing or questions.

  Keep the machine away from strong inflammable materials like a gas lighter.

  Otherwise, it may result in failure and malfunction.

  Do not use the machine at any place where there is strongb direct sunlight or high temperature.

  Otherwise, it may result in failure and malfunction.





  Do not install the machine at any place where it may contact directly with rain or snow.

  Otherwise, it may result in failure and malfunction.





  Do not give direct watering to the machine when cleaning.

  Otherwise, it may result in failure and malfunction.





  When exchanging batteries, replace all of them by new spares.

  If new batteries are used together with used ones, their life cannot be guaranteed and the machine may not work normally.



  Use genuine alkaline batteries only.

  If rechargeable batteries are used, the machine may not work normally.






ตัวอย่างผลงานการติดตั้งจริง

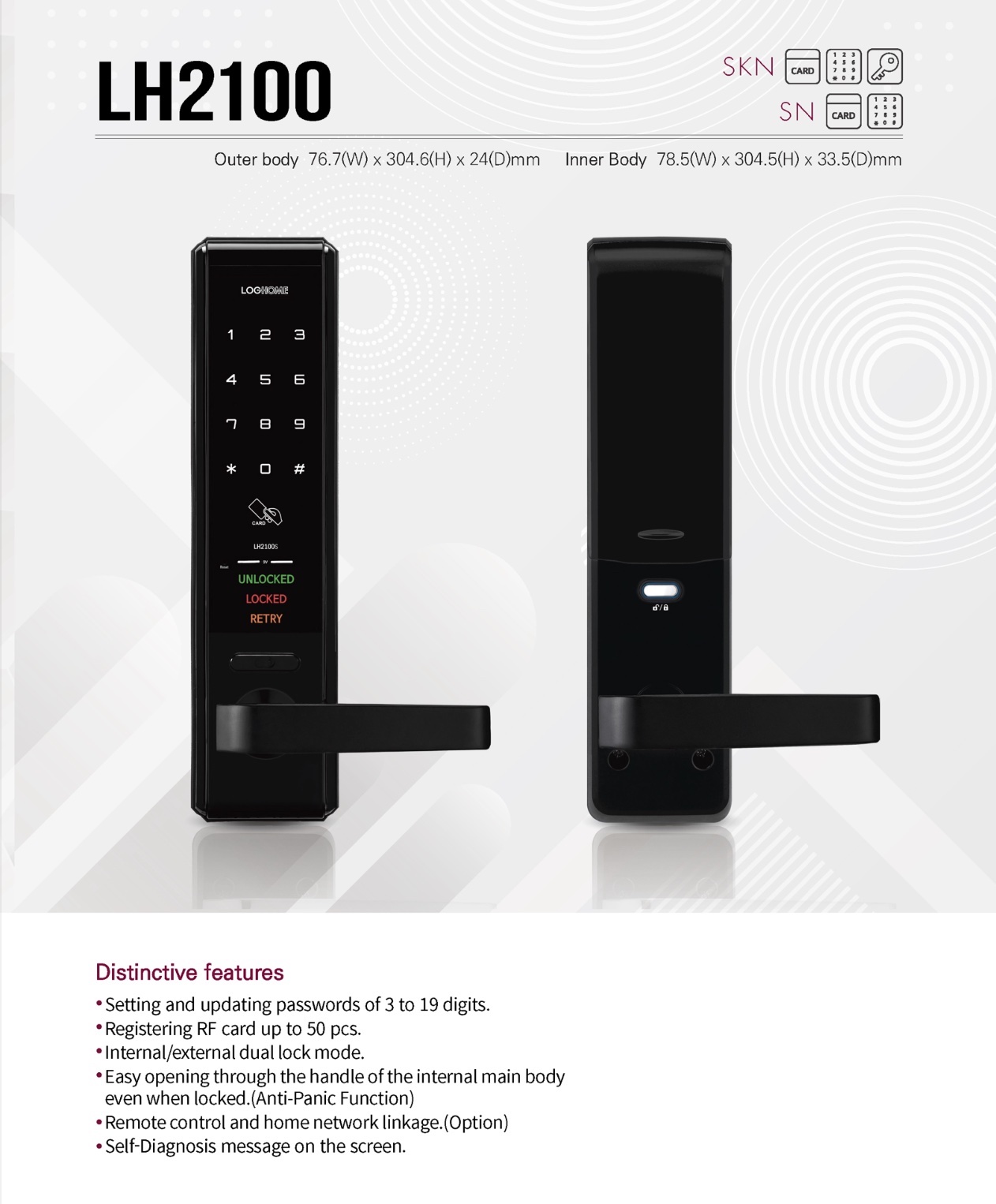

SPECIFICATIONS
Model (รุ่น) Loghome LH2100SKN
Type (ประเภท) Main-lock
Lock Set Mortise lock
Pin (รหัส) 1 ชุด (3-19 digits)
RF Card (บัตร) รองรับสูงสุด 50 ใบ
Finger print (ลายนิ้วมือ) -
Emergency Key (กุญแจฉุกเฉิน) 3 ดอก
Remote Control (รีโมท) 15 Option (แยกจำหน่าย)
Multi-Authentication -
Materials (วัสดุ) AL, ZN, PC, ABS
Auto Lock System Yes
Force Lock System Yes
Power Supply (แหล่งพลังงาน) 1.5V AA Alkaline Battery (LR6) x 8
Emergency Supply (9V.) Yes
Front Body Size 76.7mm (W) x 304.6mm (H) x 24mm (D)
Main Body Size 78.5mm (W) x 304.5mm (H) x 33.5 mm (D)

Description

Loghome รุ่น LH2100SKN เป็น Main lock ที่ใช้ได้ทั้งระบบ รหัส บัตร (รองรับบัตรแรบบิท) และกุญแจ

กลอนประตูดิจิตอล digital smart lock Loghome



Distinctive Features :



     ●  Set up and change the password of 3~19 digits

     ●  Register the touch key up to 50 keys (Touch key type)

      Auto locking function

      Indoor/outdoor double lockup function

      Generate the alarm sound of 90dB or higher when forced to open abnormally

      Can use the 9V emergency power supply

      Prevention of burglary and mischief

        (It stops functioning for 1 minute when 5 consecutive password errors)






Product Specification



Category

Description

 Basic

information

 Model name

 LH2100-SKN

Access-Code

 3 ~ 19 digits

Card registration number

 Within 50

 Remote control registration number

15(Optional)

  Thickness of the door

35 ~ 50 mm

 Size

   Outdoor body

76.7 (W) × 304.6 (H) × 24 (D)mm



 Indoor body

78.5 (W) × 304.5 (H) × 33.5 (D)mm

 Material

  Outdoor body

 AL, ZN, PC, ABS

 Indoor body

 AL, ZN, ABS

 Treat the surface

 Triple metallic coating

 Power

 Working power

6V (alkaline battery 1.5V × 4 ea, AA SIZE)

 Emergency power

9V rectangular alkaline battery

 (separately purchased)

  Card size

25mm(W) x 25mm(H) x 0.8mm(D)

 Card frequency

13.561Mhz



 Precaution







  Read through this manual before use.

  Read the manual and then operate all functions. For a right after-sales service, prepare a product    certificate and keep it.

  Do not disassemble the machine at random. It may result in failure.

 When you disassemble it at your disposal, it may not work normally. If necessary, contact the customer center.

  Don not give the machine any impact or perform remodeling in any case.

  Otherwise, it may result in failure and malfunction.

  Do use the machine at a place where there is no water or moisture.

  It has no waterproof and dustproof function. So, any failure may be caused by short circuit, etc.





  Close all holes in the door after installation.

  Otherwise, outsiders may enter without permission through a slot for milk throwing or questions.

  Keep the machine away from strong inflammable materials like a gas lighter.

  Otherwise, it may result in failure and malfunction.

  Do not use the machine at any place where there is strongb direct sunlight or high temperature.

  Otherwise, it may result in failure and malfunction.





  Do not install the machine at any place where it may contact directly with rain or snow.

  Otherwise, it may result in failure and malfunction.





  Do not give direct watering to the machine when cleaning.

  Otherwise, it may result in failure and malfunction.





  When exchanging batteries, replace all of them by new spares.

  If new batteries are used together with used ones, their life cannot be guaranteed and the machine may not work normally.



  Use genuine alkaline batteries only.

  If rechargeable batteries are used, the machine may not work normally.






ตัวอย่างผลงานการติดตั้งจริง

Specification

SPECIFICATIONS
Model (รุ่น) Loghome LH2100SKN
Type (ประเภท) Main-lock
Lock Set Mortise lock
Pin (รหัส) 1 ชุด (3-19 digits)
RF Card (บัตร) รองรับสูงสุด 50 ใบ
Finger print (ลายนิ้วมือ) -
Emergency Key (กุญแจฉุกเฉิน) 3 ดอก
Remote Control (รีโมท) 15 Option (แยกจำหน่าย)
Multi-Authentication -
Materials (วัสดุ) AL, ZN, PC, ABS
Auto Lock System Yes
Force Lock System Yes
Power Supply (แหล่งพลังงาน) 1.5V AA Alkaline Battery (LR6) x 8
Emergency Supply (9V.) Yes
Front Body Size 76.7mm (W) x 304.6mm (H) x 24mm (D)
Main Body Size 78.5mm (W) x 304.5mm (H) x 33.5 mm (D)
