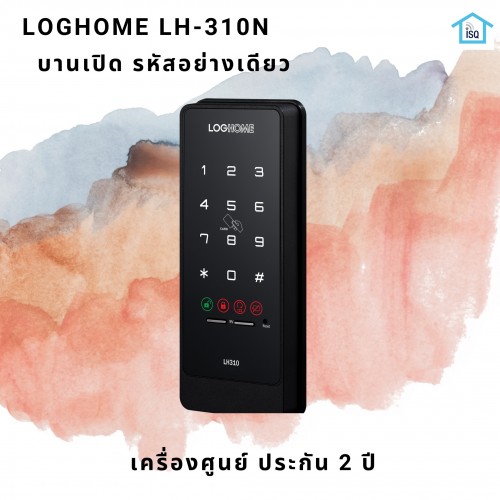

Digital door lock กลอนประตูดิจิตอล - Loghome LH310N (รหัสอย่างเดียว)

Digital door lock กลอนประตูดิจิตอล - Loghome LH310N (รหัสอย่างเดียว)
Digital door lock กลอนประตูดิจิตอล - Loghome LH310N (รหัสอย่างเดียว) Digital door lock กลอนประตูดิจิตอล - Loghome LH310N (รหัสอย่างเดียว)
Brand: Loghome / Evernet
Product Code: Loghome LH310N (Pin only)
Availability: In Stock
Price: ฿5,900.00 ฿2,900.00
Ex Tax: ฿2,900.00
Qty:     - OR -   Add to Wish List
Add to Compare

Loghome รุ่น LH310N เป็น Sub lock ที่ถูกที่สุด ใช้ระบบรหัส สามารถตั้งรหัสลูกได้

** เริ่มต้น 2,900 (ระบบรหัสอย่างเดียว) **

กลอนประตูดิจิตอล digital smart lock Loghome



Distinctive Features :



     Set up and change the password of 3~19 digits

     Auto locking function

     Internal/External double lockup function

     Generate the alarm sound of 90dB or higher when forced to open abnormally

     Can use the 9V emergency power supply

     Prevention of burglary and mischief

        (It stops functioning for 1 minute when 5 consecutive password errors)

     ● Self-Diagnosis icon on the screen







Product Specification



Category

Description

 Basic

information

 Model name

LH310-SN

Access-Code

3 ~ 19 digits

  Thickness of the door

35-50 mm

 Size

   Outdoor body

76.4 (W) × 177.8 (H) × 22.5 (D)mm



 Indoor body

78.2 (W) × 174.15 (H) × 50.4 (D)mm

 Material

  Outdoor body

 AL, ZN, PC, ABS

 Indoor body

 AL, ZN, ABS

 Treat the surface

 Triple metallic coating

 Power

 Working power

6V (alkaline battery 1.5V × 4 ea, AA SIZE)

 Emergency power

9V rectangular alkaline battery

 (separately purchased)





Precaution



  Read through this manual before use.

  Read the manual and then operate all functions. For a right after-sales service, prepare a product    certificate and keep it.

  Do not disassemble the machine at random. It may result in failure.

 When you disassemble it at your disposal, it may not work normally. If necessary, contact the customer center.

  Do not give the machine any impact or perform remodeling in any case.

  Otherwise, it may result in failure and malfunction.

  Do use the machine at a place where there is no water or moisture.

  It has no waterproof and dustproof function. So, any failure may be caused by short circuit, etc.





  Close all holes in the door after installation.

  Otherwise, outsiders may enter without permission through a slot for milk throwing or questions.

  Keep the machine away from strong inflammable materials like a gas lighter.

  Otherwise, it may result in failure and malfunction.

  Do not use the machine at any place where there is strong direct sunlight or high temperature.

  Otherwise, it may result in failure and malfunction.





  Do not install the machine at any place where it may contact directly with rain or snow.

  Otherwise, it may result in failure and malfunction.





  Do not give direct watering to the machine when cleaning.

  Otherwise, it may result in failure and malfunction.





  When exchanging batteries, replace all of them by new spares.

  If new batteries are used together with used ones, their life cannot be guaranteed and the machine may not work normally.



  Use genuine alkaline batteries only.

  If rechargeable batteries are used, the machine may not work normally.




ตัวอย่างผลงานการติดตั้งจริง

digital door lock loghome LH310



 ​




SPECIFICATIONS
Model (รุ่น) Loghome LH300SKN
Type (ประเภท) Sub-lock
Lock Set HOOK
Pin (รหัส) Master 1 ชุด (3-19 digits) User 1 ชุด
RF Card (บัตร) รองรับสูงสุด 50 ใบ
Finger print (ลายนิ้วมือ) -
Emergency Key (กุญแจฉุกเฉิน) -
Remote Control (รีโมท) Option (แยกจำหน่าย)
Multi-Authentication -
Materials (วัสดุ) AL, ZN, PC, ABS
Auto Lock System Yes
Force Lock System Yes
Power Supply (แหล่งพลังงาน) 1.5V AA Alkaline Battery (LR6) x 4
Emergency Supply (9V.) Yes
Front Body Size 20mm (W) x 169mm (H) x 70.5mm (D)
Main Body Size 162.3mm (W) x 93.2mm (H) x 36.0 mm (D)

Description

Loghome รุ่น LH310N เป็น Sub lock ที่ถูกที่สุด ใช้ระบบรหัส สามารถตั้งรหัสลูกได้

** เริ่มต้น 2,900 (ระบบรหัสอย่างเดียว) **

กลอนประตูดิจิตอล digital smart lock Loghome



Distinctive Features :



     Set up and change the password of 3~19 digits

     Auto locking function

     Internal/External double lockup function

     Generate the alarm sound of 90dB or higher when forced to open abnormally

     Can use the 9V emergency power supply

     Prevention of burglary and mischief

        (It stops functioning for 1 minute when 5 consecutive password errors)

     ● Self-Diagnosis icon on the screen







Product Specification



Category

Description

 Basic

information

 Model name

LH310-SN

Access-Code

3 ~ 19 digits

  Thickness of the door

35-50 mm

 Size

   Outdoor body

76.4 (W) × 177.8 (H) × 22.5 (D)mm



 Indoor body

78.2 (W) × 174.15 (H) × 50.4 (D)mm

 Material

  Outdoor body

 AL, ZN, PC, ABS

 Indoor body

 AL, ZN, ABS

 Treat the surface

 Triple metallic coating

 Power

 Working power

6V (alkaline battery 1.5V × 4 ea, AA SIZE)

 Emergency power

9V rectangular alkaline battery

 (separately purchased)





Precaution



  Read through this manual before use.

  Read the manual and then operate all functions. For a right after-sales service, prepare a product    certificate and keep it.

  Do not disassemble the machine at random. It may result in failure.

 When you disassemble it at your disposal, it may not work normally. If necessary, contact the customer center.

  Do not give the machine any impact or perform remodeling in any case.

  Otherwise, it may result in failure and malfunction.

  Do use the machine at a place where there is no water or moisture.

  It has no waterproof and dustproof function. So, any failure may be caused by short circuit, etc.





  Close all holes in the door after installation.

  Otherwise, outsiders may enter without permission through a slot for milk throwing or questions.

  Keep the machine away from strong inflammable materials like a gas lighter.

  Otherwise, it may result in failure and malfunction.

  Do not use the machine at any place where there is strong direct sunlight or high temperature.

  Otherwise, it may result in failure and malfunction.





  Do not install the machine at any place where it may contact directly with rain or snow.

  Otherwise, it may result in failure and malfunction.





  Do not give direct watering to the machine when cleaning.

  Otherwise, it may result in failure and malfunction.





  When exchanging batteries, replace all of them by new spares.

  If new batteries are used together with used ones, their life cannot be guaranteed and the machine may not work normally.



  Use genuine alkaline batteries only.

  If rechargeable batteries are used, the machine may not work normally.




ตัวอย่างผลงานการติดตั้งจริง

digital door lock loghome LH310



 ​




Specification

SPECIFICATIONS
Model (รุ่น) Loghome LH300SKN
Type (ประเภท) Sub-lock
Lock Set HOOK
Pin (รหัส) Master 1 ชุด (3-19 digits) User 1 ชุด
RF Card (บัตร) รองรับสูงสุด 50 ใบ
Finger print (ลายนิ้วมือ) -
Emergency Key (กุญแจฉุกเฉิน) -
Remote Control (รีโมท) Option (แยกจำหน่าย)
Multi-Authentication -
Materials (วัสดุ) AL, ZN, PC, ABS
Auto Lock System Yes
Force Lock System Yes
Power Supply (แหล่งพลังงาน) 1.5V AA Alkaline Battery (LR6) x 4
Emergency Supply (9V.) Yes
Front Body Size 20mm (W) x 169mm (H) x 70.5mm (D)
Main Body Size 162.3mm (W) x 93.2mm (H) x 36.0 mm (D)
